Cage Bearings - Pivot: 3/16"<br>Ceramic Bearings: 1mm (16 ball)
Cage Bearings - Pivot: 3/16"<br>Ceramic Bearings: 1mm (16 ball)
Couldn't load pickup availability
The new bearing compatibility list is now live, check it out here!

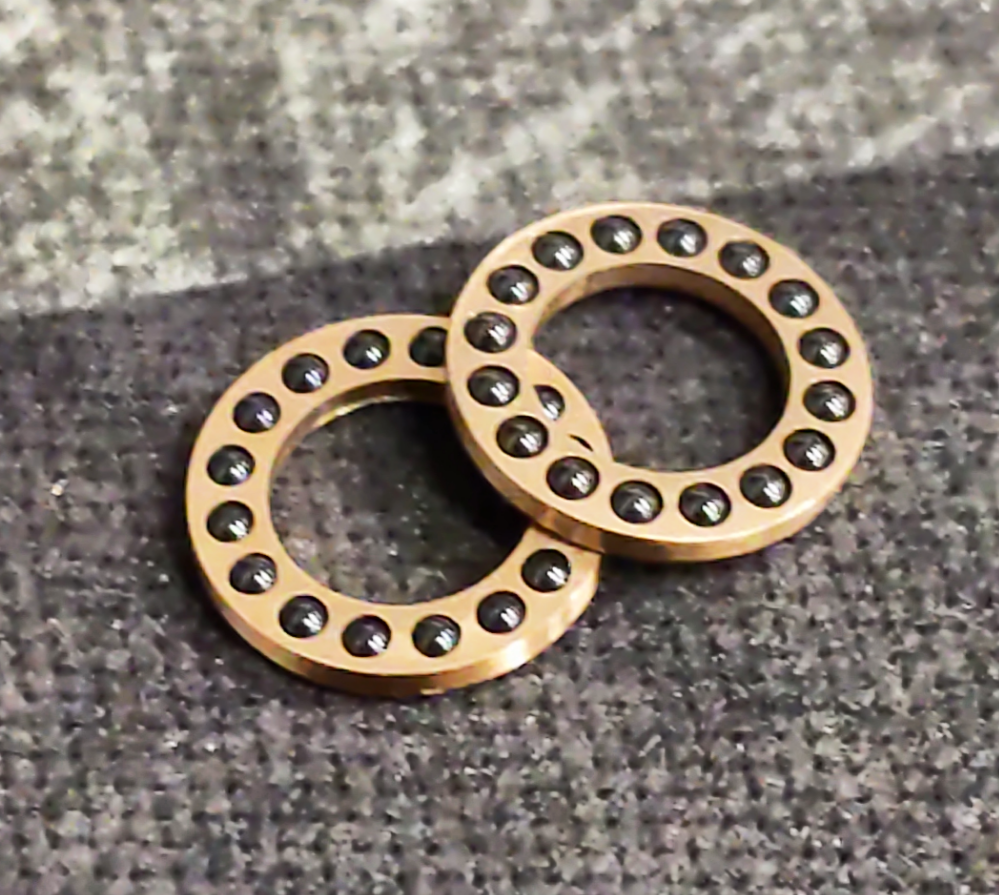

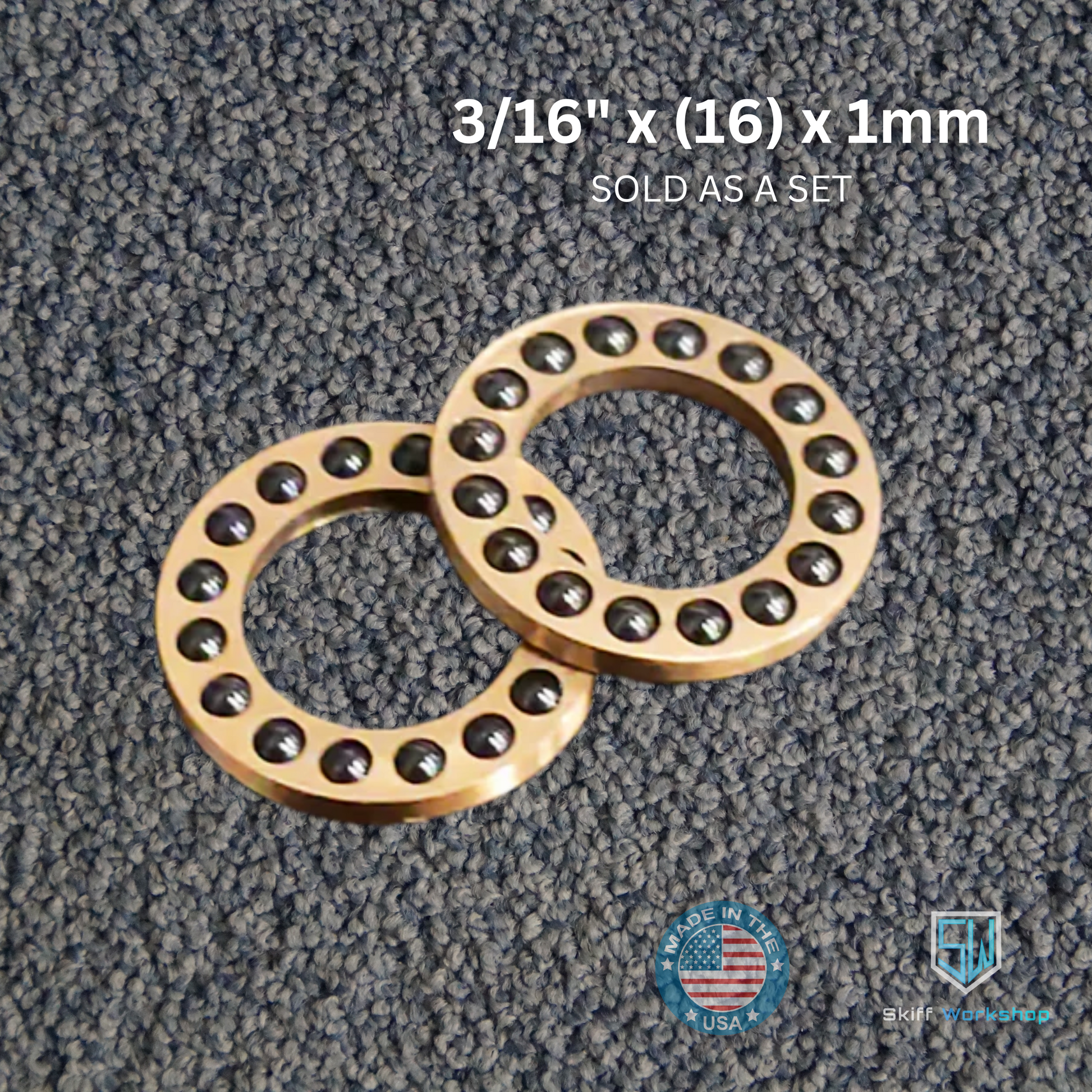

Cage bearings that allow more balls to be placed around the knife pivot than standard cage bearings. Which provides more support for the blade and decreasing stress on each ball. The ceramic balls are captured in the disc but are still free floating to prevent binding.
Includes Grade 5 ceramic bearings pre-installed.
- Increased blade support over caged bearings of same size
- Improved ball pathing around pivot
- Less pivot screw tightening required
- CNC machined from solid phosphor bronze
Dimensions
| ID | OD | Disc | Ball |
| 0.189" | 0.300" | 0.030" | 0.0393" |
| 4.8mm | 7.62mm | 0.76mm | 1mm |
Ordering details
- One set equals two individual cage bearings
Bearing Compatibility
The below knives have been found to work with this bearing.
Click here to view the full compatibility chart.
Exactly what I ordered and need. Very high quality. Going to be my main source of bearings from here on out.
Solid working bearings I just wish there were reference pictures with the other sizes it was my fault for getting the wrong size but it would help if there were references
I LOVE IT!
Perfect made, excellent performance !
I've been looking for replacement bearings for my beloved Spyderco Mantra (the others rusted out) and these fit perfect. Had to work on centering/pivot tightness but got it dialed in. Great product!
100% perfect fit.
