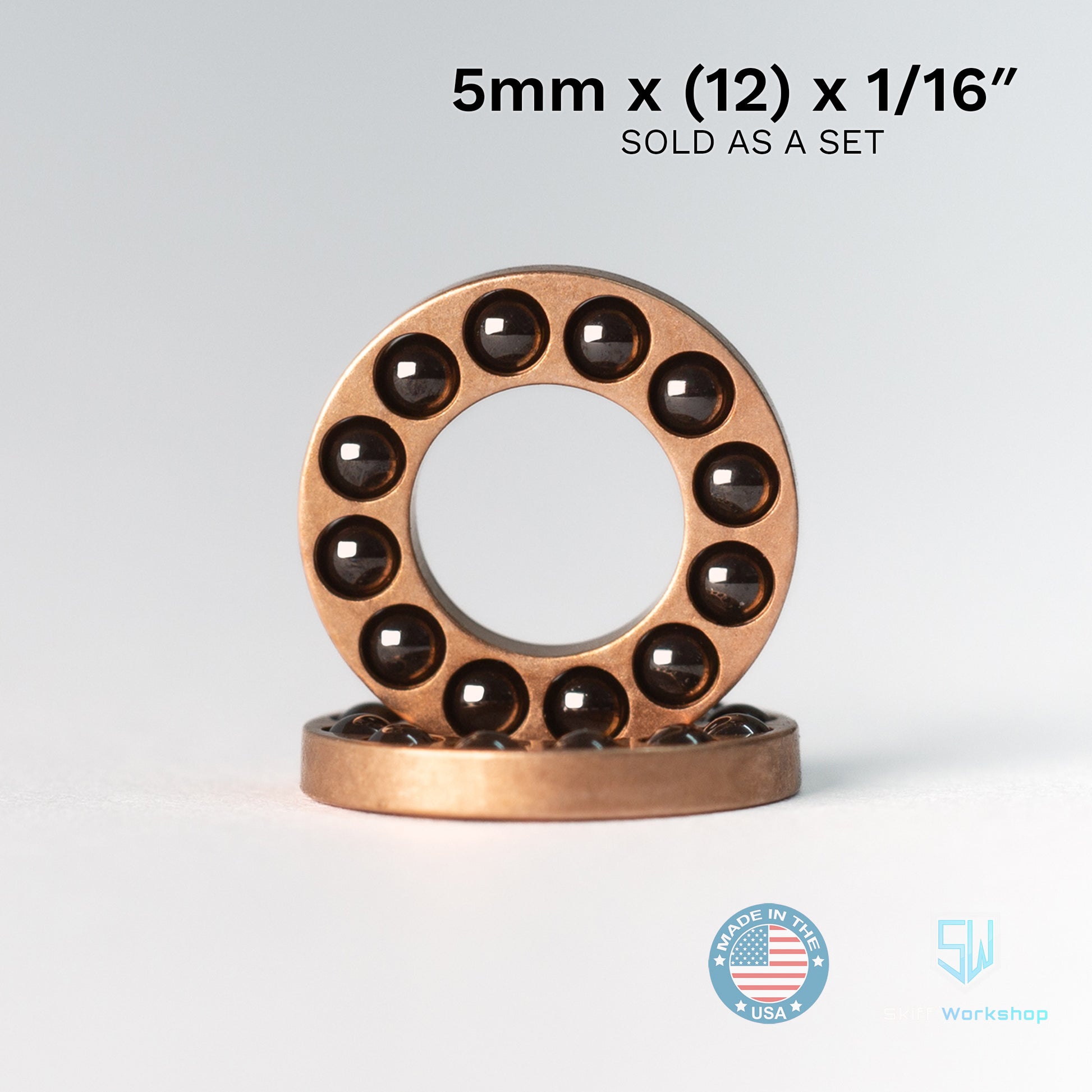

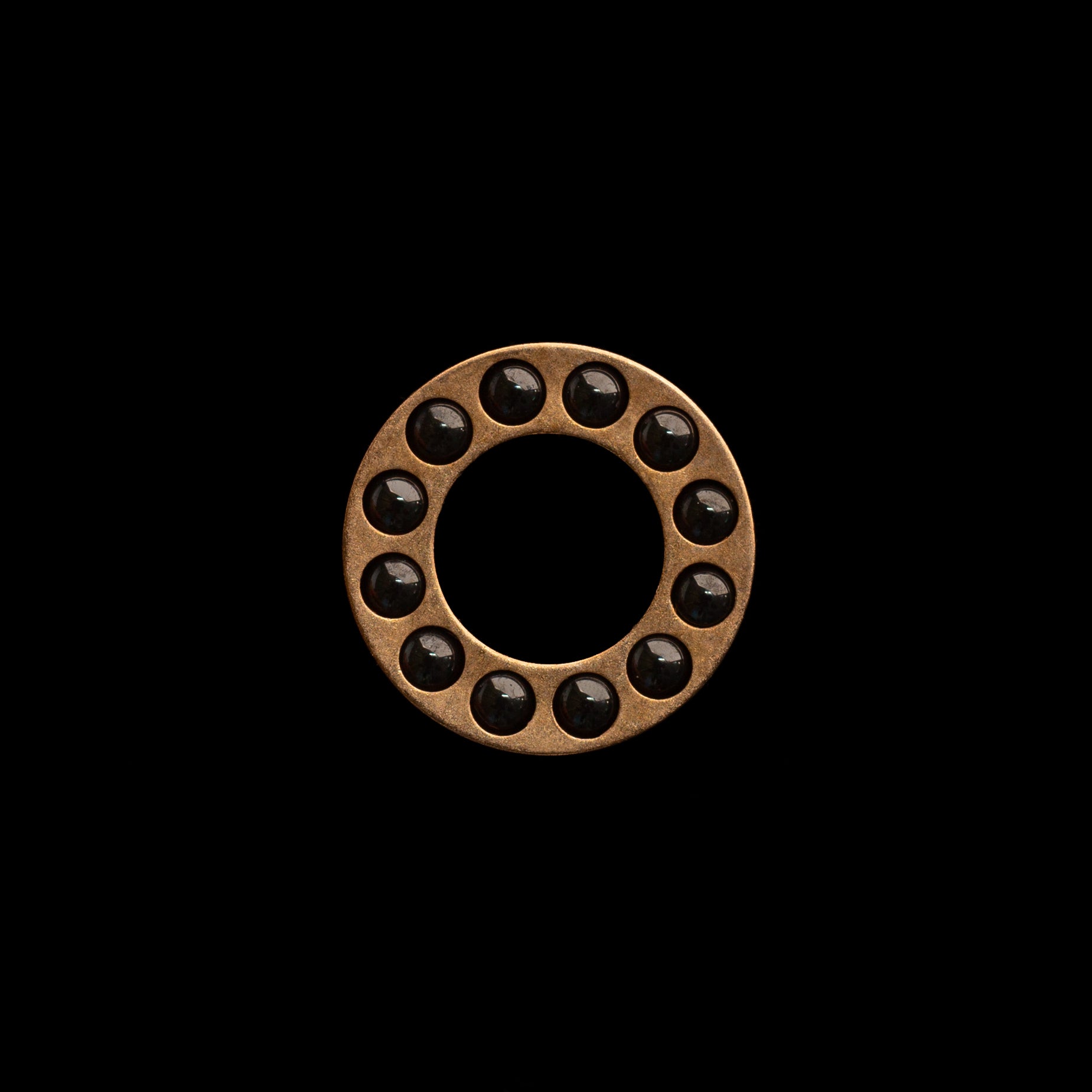

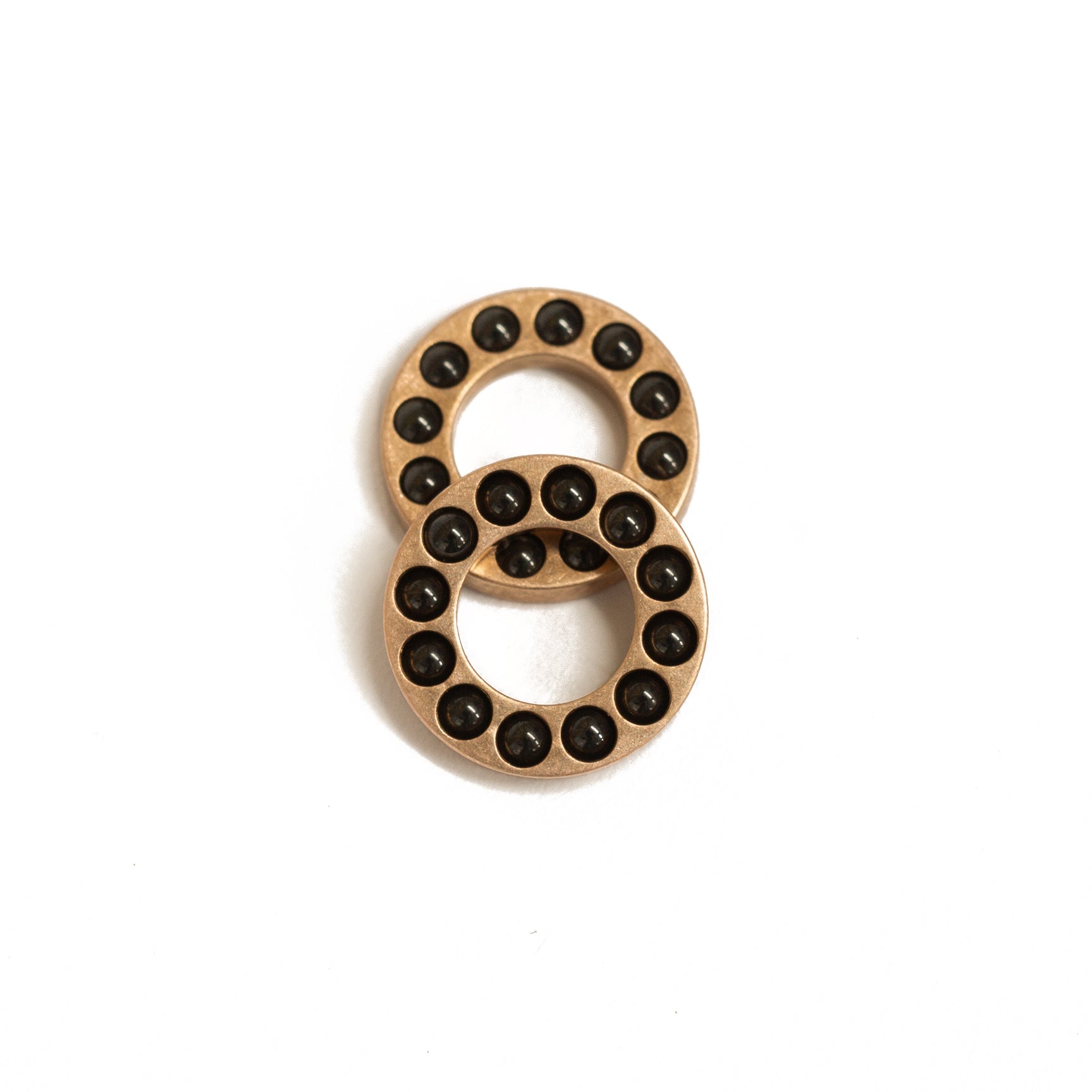

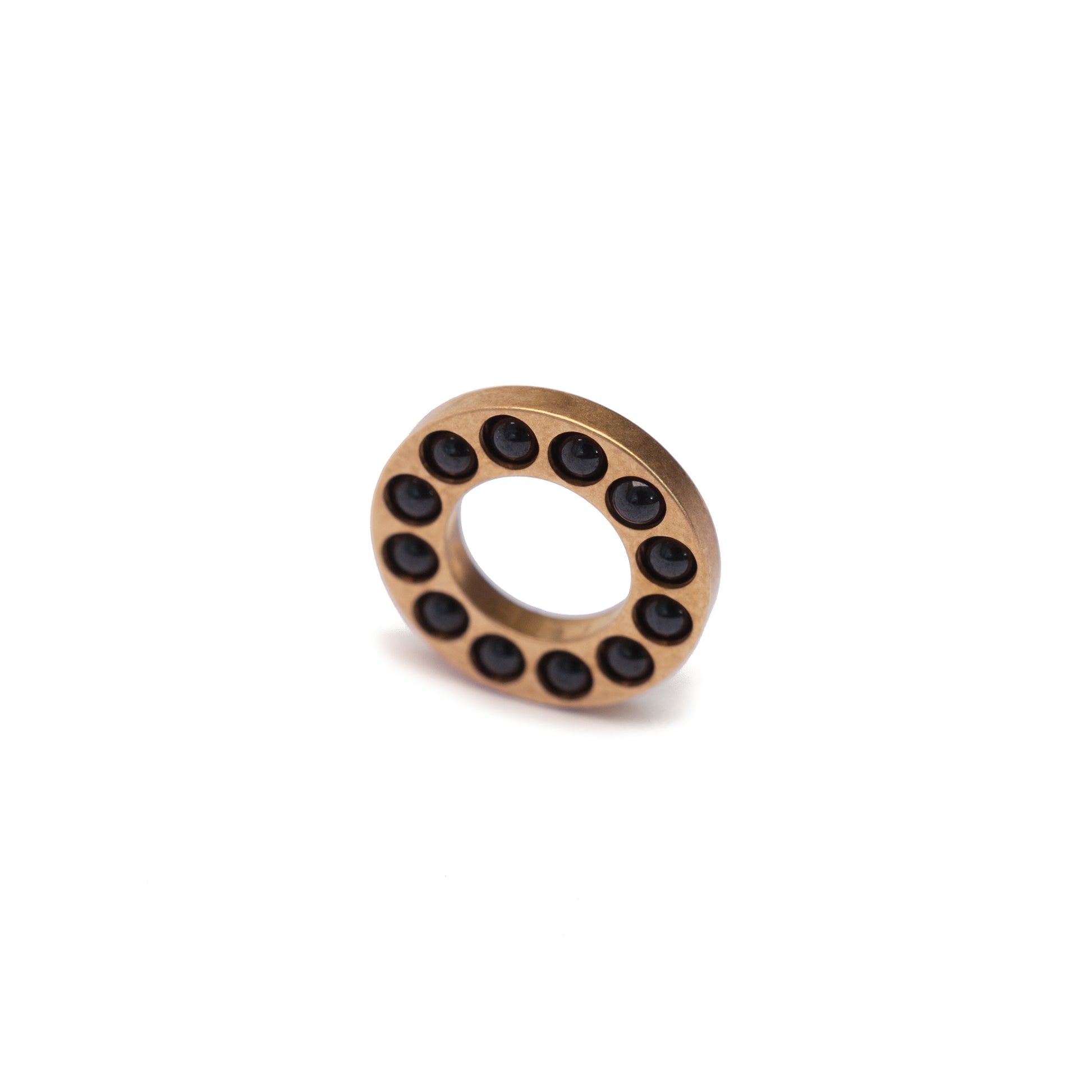

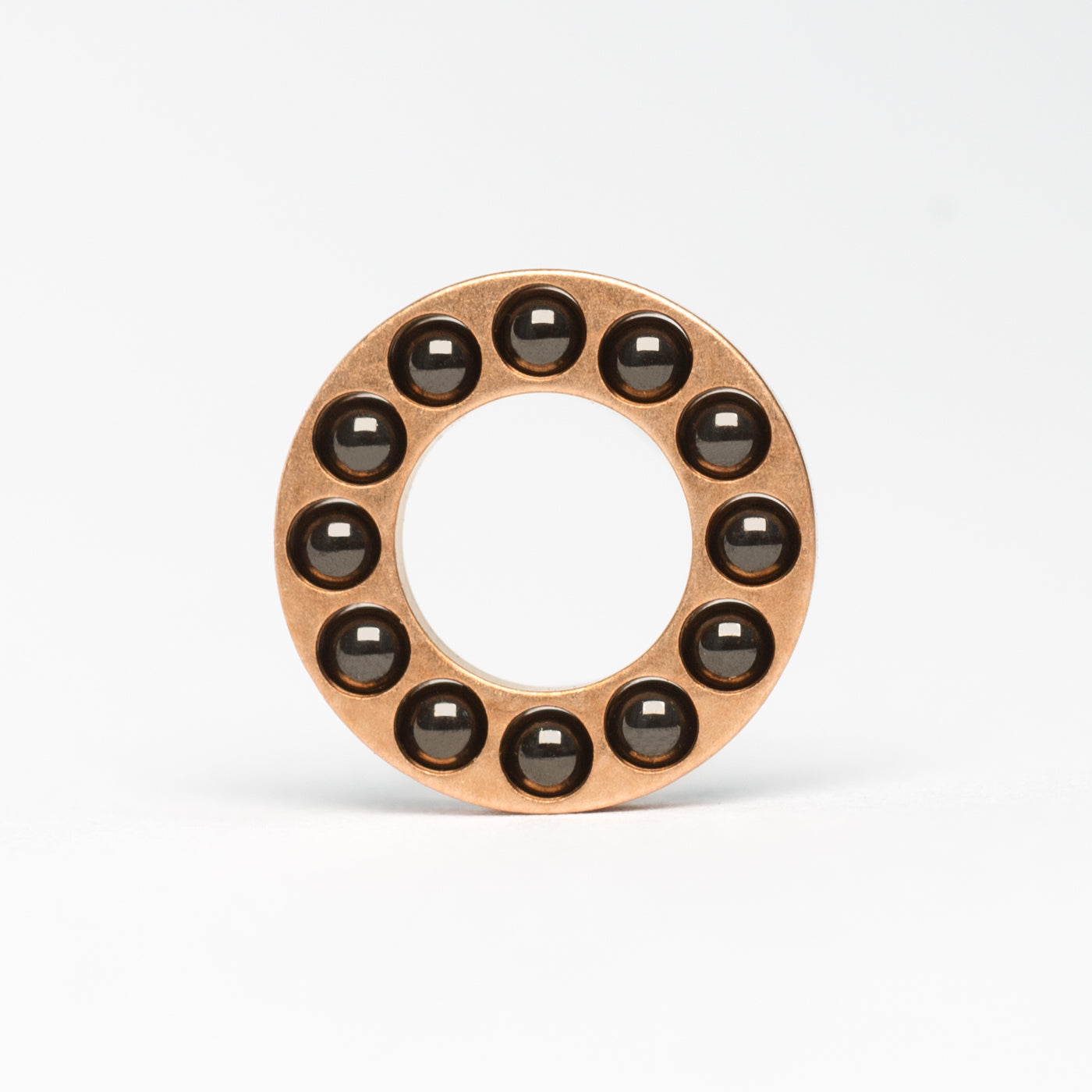

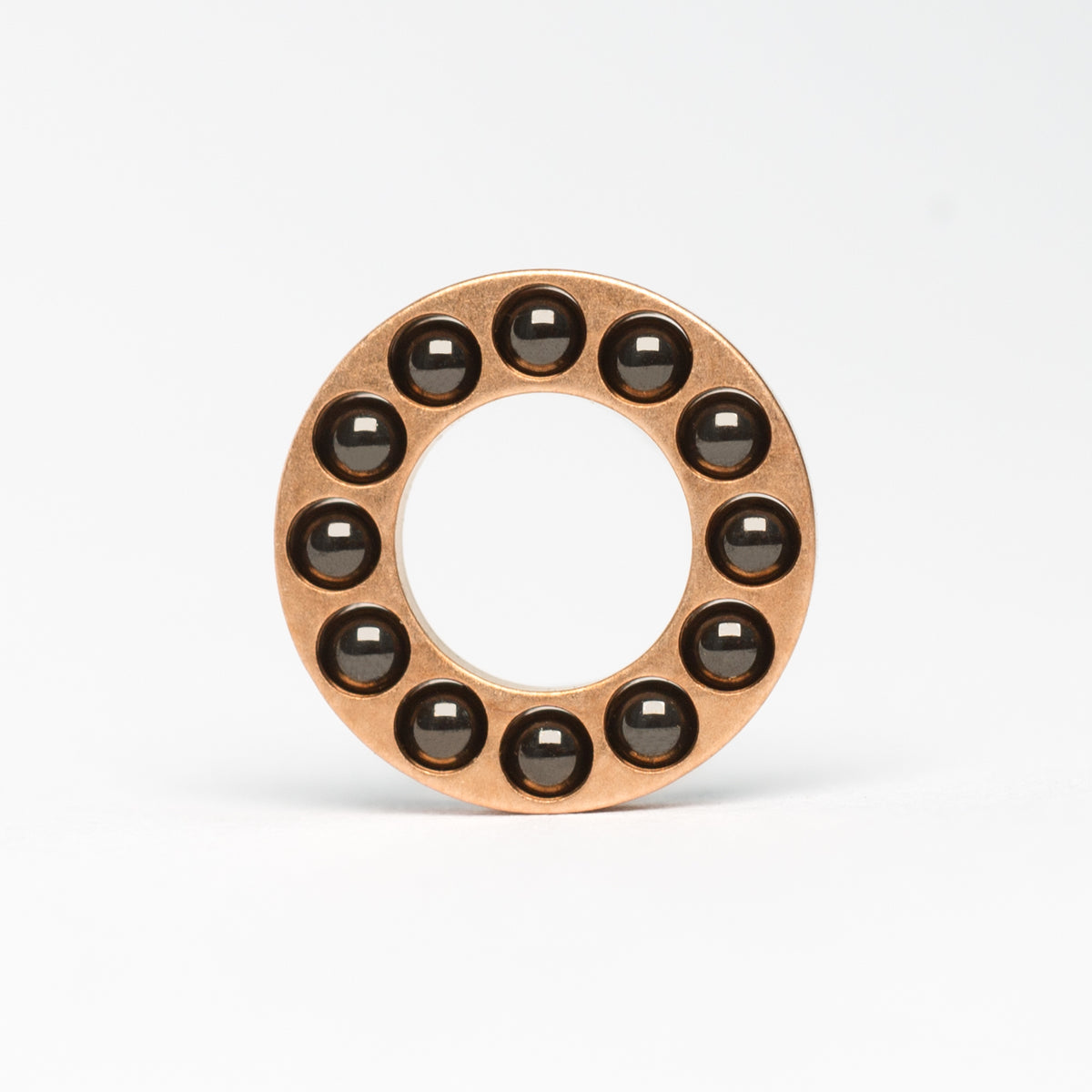

Cage Bearings - Pivot: 5mm Ceramic Bearings: 1/16 in (12 ball)
Cage Bearings - Pivot: 5mm Ceramic Bearings: 1/16 in (12 ball)
Couldn't load pickup availability
The new bearing compatibility list is now live, check it out here!
Cage bearings that allow more balls to be placed around the knife pivot than standard cage bearings. Which provides more support for the blade and decreasing stress on each ball. The ceramic balls are captured in the disc but are still free floating to prevent binding.
Includes Grade 5 ceramic bearings pre-installed.
- Increased blade support over caged bearings of same size
- Improved ball pathing around pivot
- Less pivot screw tightening required
- CNC machined from solid phosphor bronze
Dimensions
| ID | OD | Disc | Ball |
| 0.200" | 0.370" | 0.050" | 0.0625" |
| 5.08mm | 9.398mm | 1.27mm | 1.587mm |
Ordering details
- One set equals two individual cage bearings
Bearing Compatibility
The below knives have been found to work with this bearing.
Click here to view the full compatibility chart.
The best
Cage Bearings - Pivot: 5mm Ceramic Bearings: 1/16 in (12 ball)
At this point, I‘ve only installed one set. Unfortunately, I can’t really notice much difference. Sorry, I wish I could be more encouraging.
Yours truly,
Phil
Imagine walking, and it goes smoothly, like on your toes, that's a brief description of the action in the WE Esprit. When I installed 5 mm Ceramic Bearings: 1/16 in (12 ball) it would feel like you got wings and were flying… Awesome.
Replaced OEM bearings because blade didn't open the way I thought it should, skiff bearings were perfect fit and knife opens as it should.
