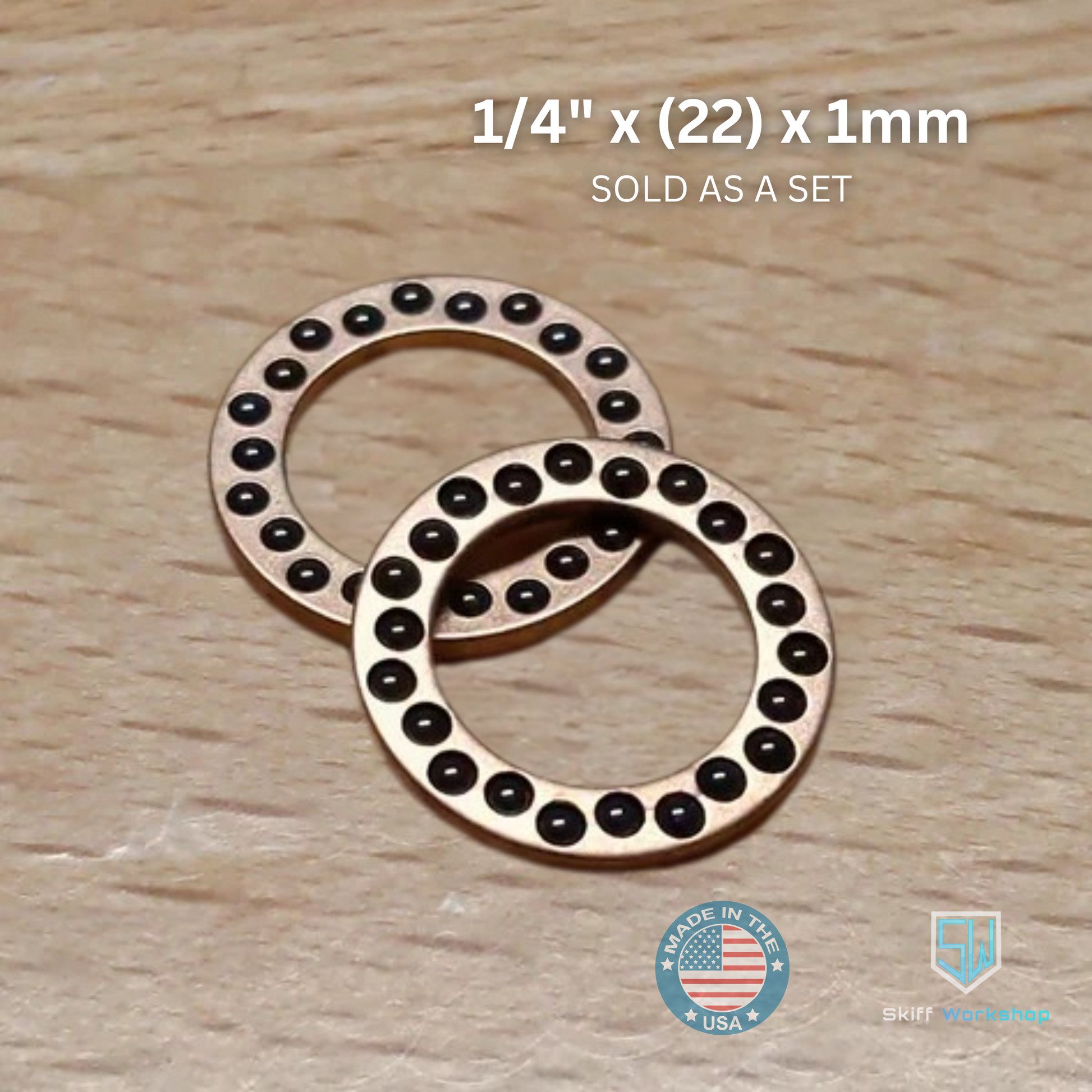

Cage Bearings - Pivot: 1/4<br>Ceramic Bearings: 1mm (22 ball)
Cage Bearings - Pivot: 1/4<br>Ceramic Bearings: 1mm (22 ball)
Couldn't load pickup availability
The new bearing compatibility list is now live, check it out here!

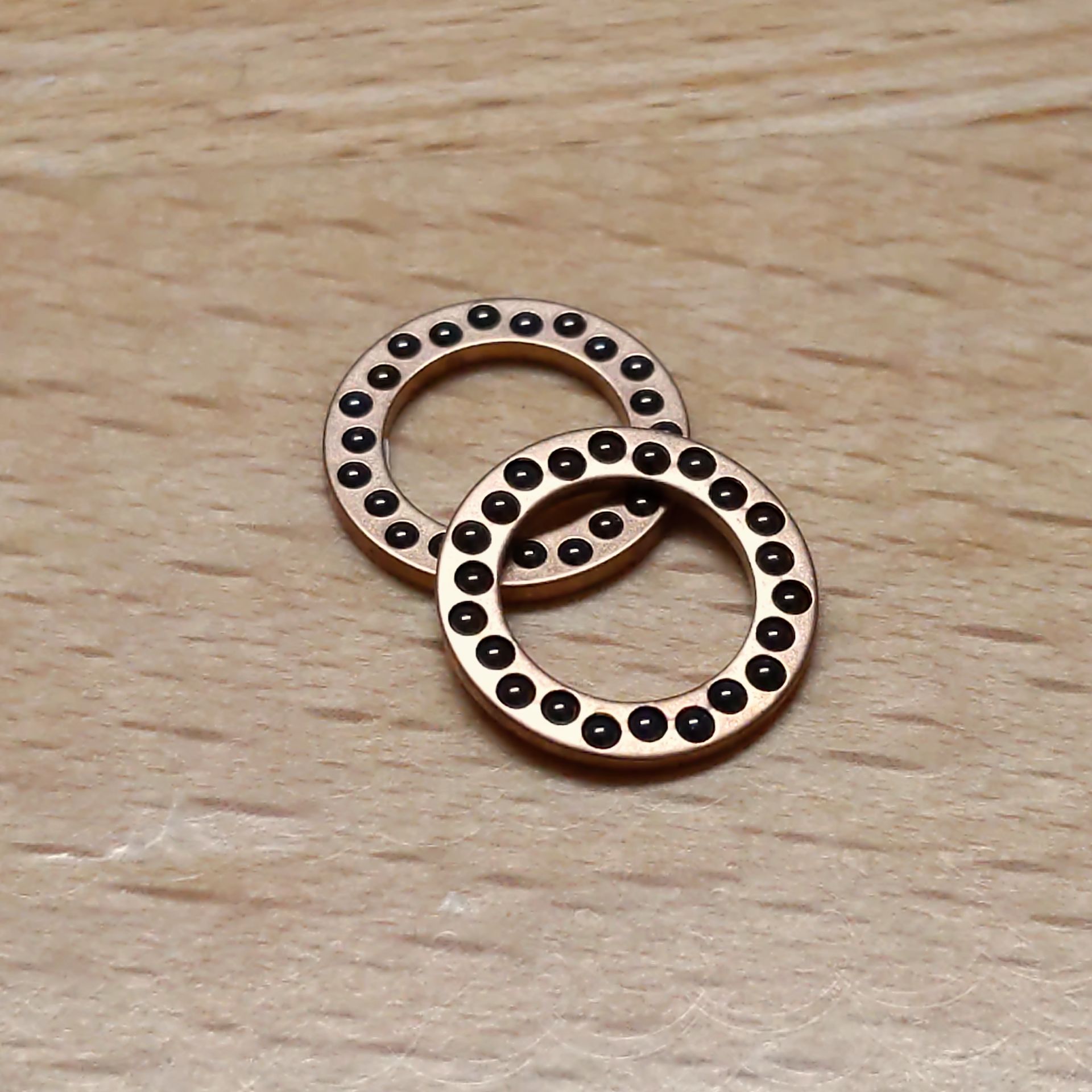

Cage bearings that allow more balls to be placed around the knife pivot than standard cage bearings. Which provides more support for the blade and decreasing stress on each ball. The ceramic balls are captured in the disc but are still free floating to prevent binding.
Includes Grade 5 ceramic bearings pre-installed.
- Increased blade support over caged bearings of same size
- Improved ball pathing around pivot
- Less pivot screw tightening required
- CNC machined from solid phosphor bronze
Dimensions
| ID | OD | Disc | Ball |
| 0.252" | 0.383" | 0.030" | 0.0393" |
| 6.40mm | 9.73mm | 0.76mm | 1mm |
Ordering details
- One set equals two individual cage bearings
Bearing Compatibility
The below knives have been found to work with this bearing.
Click here to view the full compatibility chart.
Perfect fit! :-) Peace, Stiletto :-)

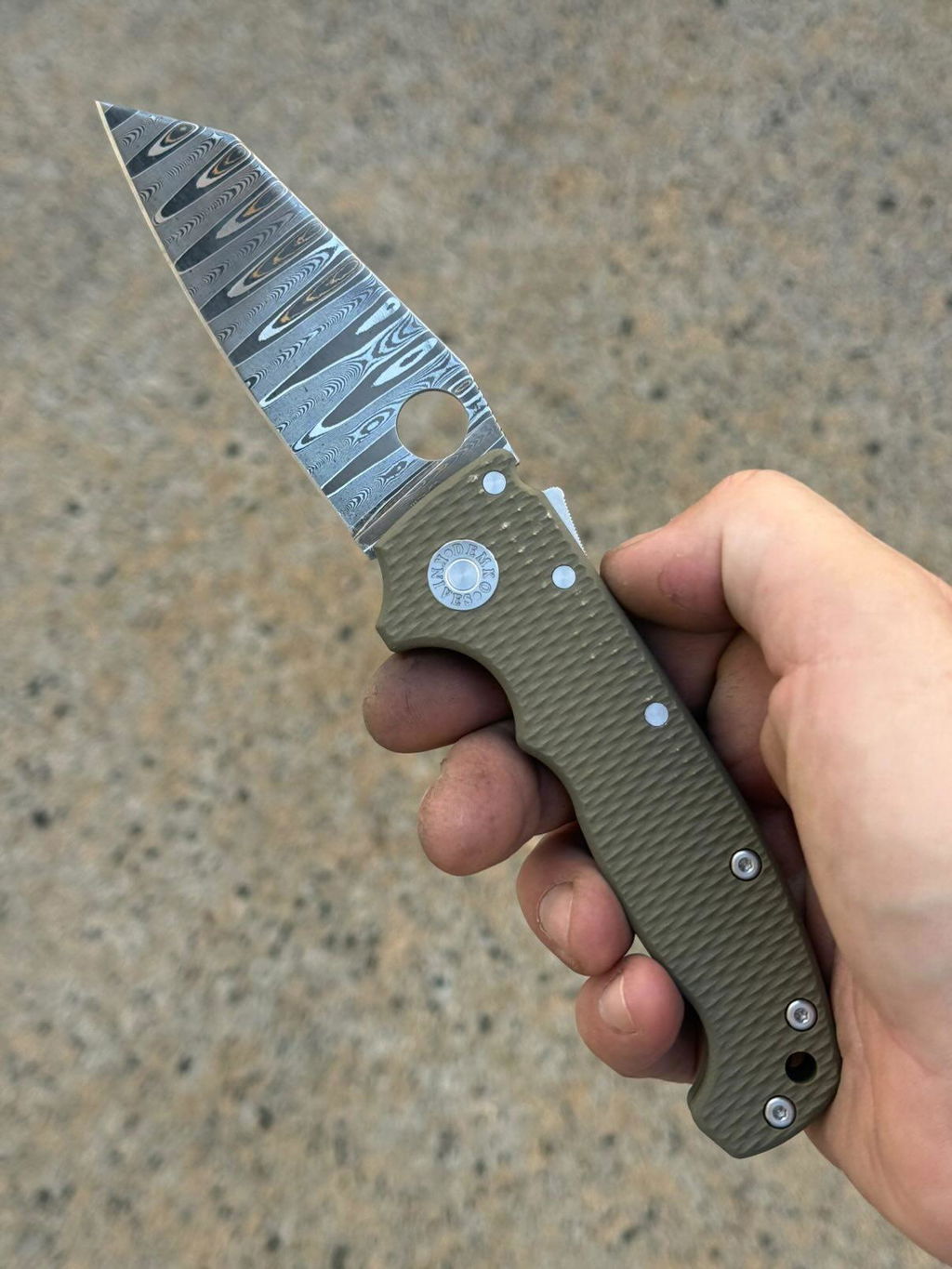

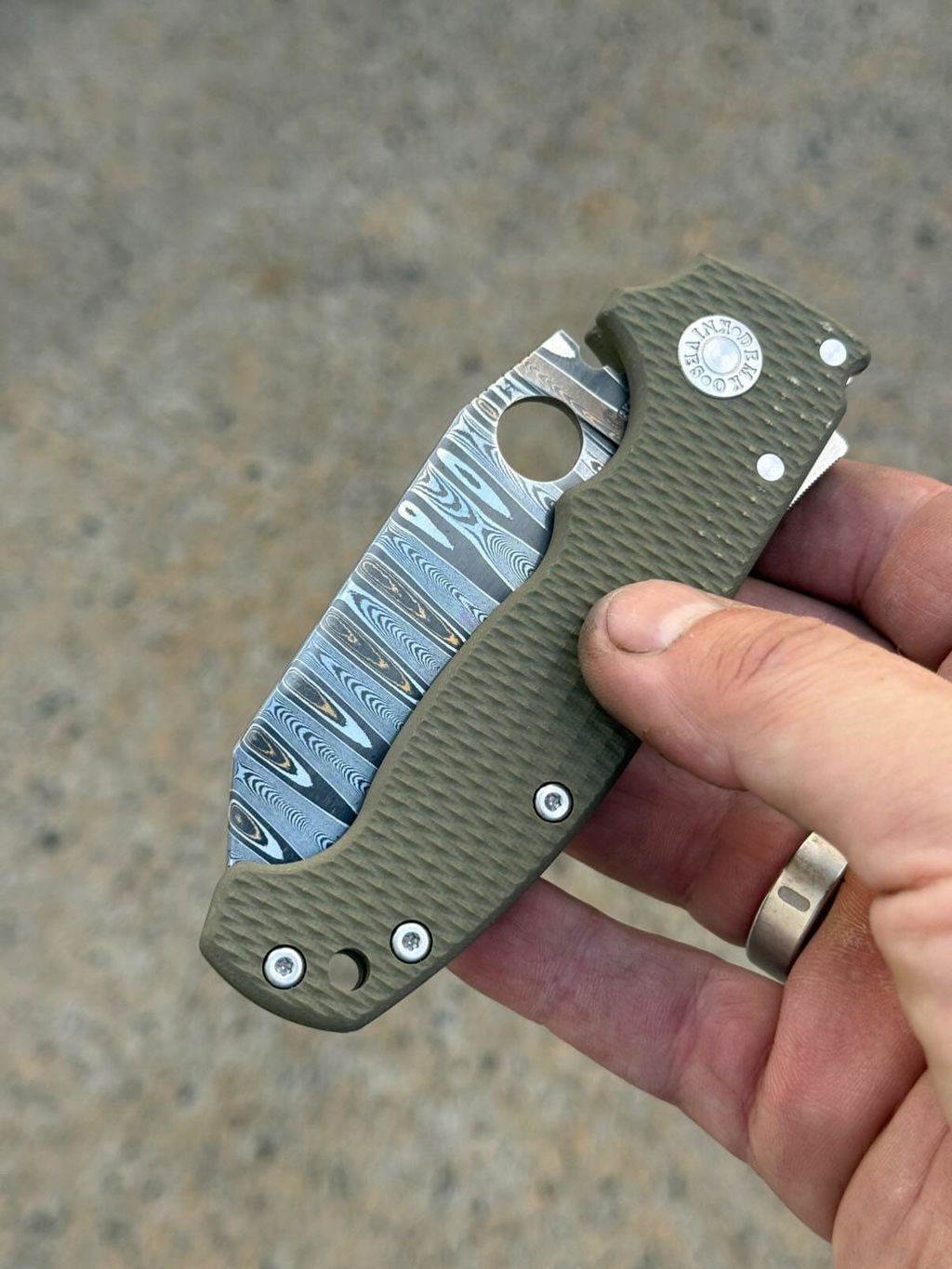

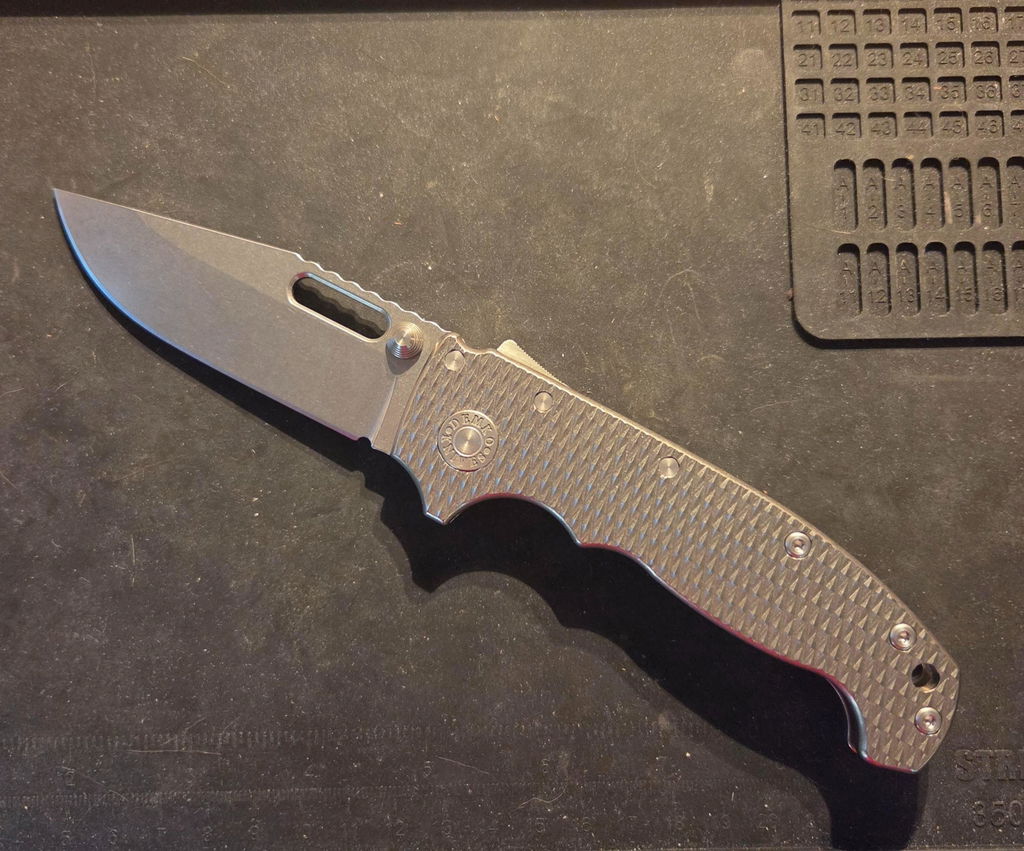

Bearings work well in my Demko AD20S. Service and communication were also on point. Thanks!
Cage Bearings - Pivot: 1/4<br>Ceramic Bearings: 1mm (22 ball)
Didn’t think bearings could make such a difference
I had picked up two sets of Cage Bearings. One was for my Demko AD20S and another for a AD20. Both sets noticeably improved the smoothness of the action and were a perfect fit.
