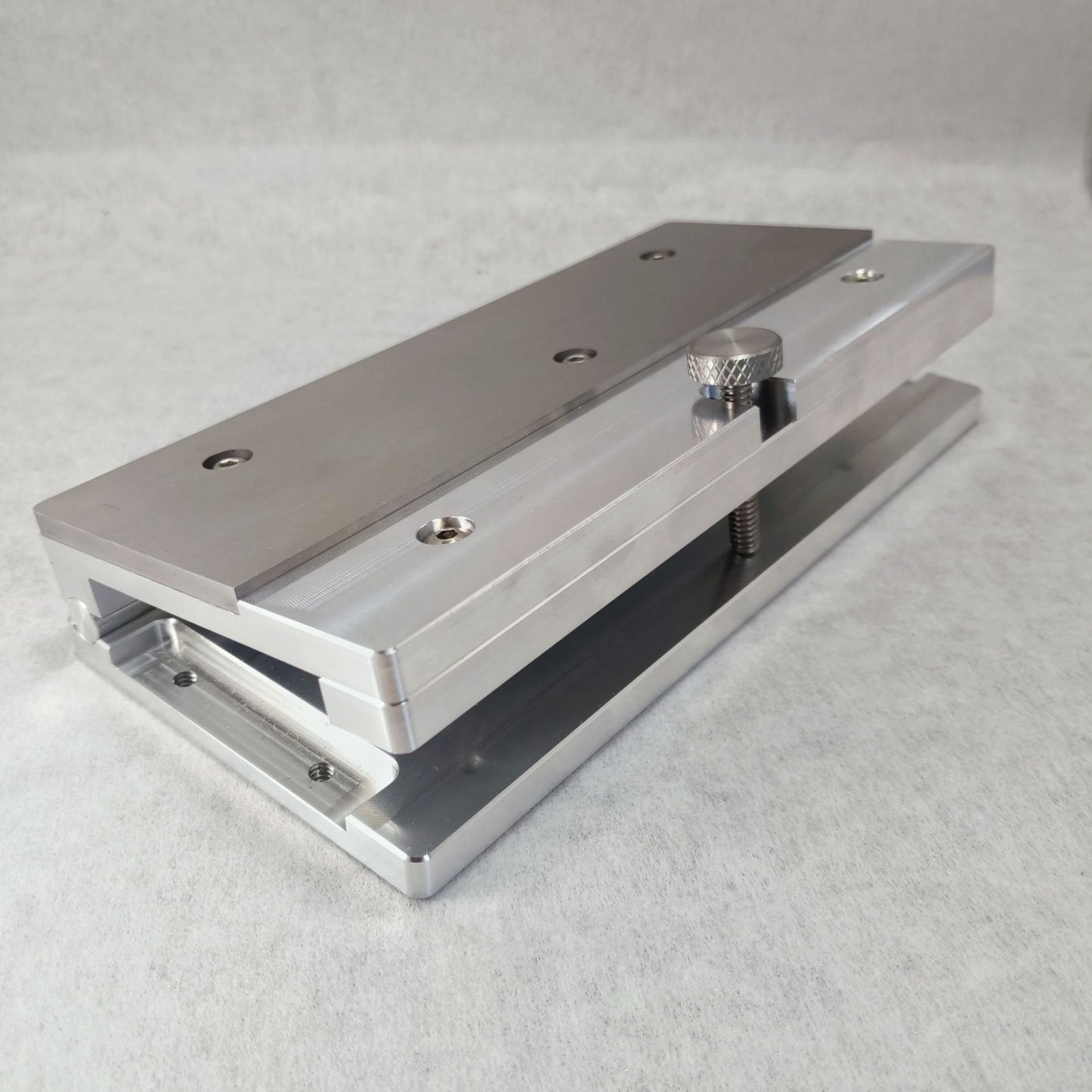

Micro Adjust - 8" Base with Steel Top

The Micro Adjust Platform lets you quickly fine tune your grinding angle and achieve repeatable results.

Shipping Note: This product ships in 1-2 weeks!!

Details:

• 3/8" Aluminum base and adjuster plates prevents deflection when in use.


• 3/8" Aluminum internal hinge with Stainless Steel pins at movement points.


• A Hardened Steel Top Plate provides a low friction work surface that does not scratch or get embedded with grit as you grind.


• Thumb screw used to finely adjust the angle of the Top Plate.


• Spring loaded retention rod keeps the thumb screw under pressure to prevent it from rotating due to vibration.


• Compatible with your pre-existing fixtures.


• (3) mounting options
• -- Clamp ledges on both sides.
• -- 1/4" mounting holes in base plate.
• -- Shaft mountable for articulating work rest systems.

Dimensions:

• 8.0" long x 3.5" wide x 1.30" tall
• 1/2" range of motion

Contents Includes:

• (1) 8" Micro Adjust Base
• (1) 8" Hardened Steel Top Plate
